DUB PL8 DIY Stickless Fightstick Enclosure
The DUB PL8 (pronouced "Dub Plate") Stickless Fightstick enclosure caters to those seeking a portable & slim "flat-box" style stickless controller but prefers having the option of installing their own choice of arcade buttons and PCBs.
*Please note: Only the enclosure is for sale. Buttons, PCB, Wiring, and Graphics/Prints are not included.
**EXPERT WIRING / MODDING SKILLS REQUIRED**
Due to the 1" internal height of this enclosure, expert wiring, cable management, and modding expertise is necessary for this build.
Specs:
• 13.5” x 8” x 1.5” (343mm x 203mm x 38mm)
• Appox. 3 lbs (1.4 kg) Fully Assembled
• Ultra Durable ¼” (6mm) thick Black Cast Acrylic Enclosure
• ⅛” (3mm) Black Acrylic or Optional ⅛” (3mm) Clear Acrylic Artwork Covers
• Includes mounting holes for Brook and similar spec PCBs.
• Includes all assembly and mounting hardware
*All Acrylic Parts are covered with a protective paper backing. Please peel off during assembly.
Essential Parts Needed:

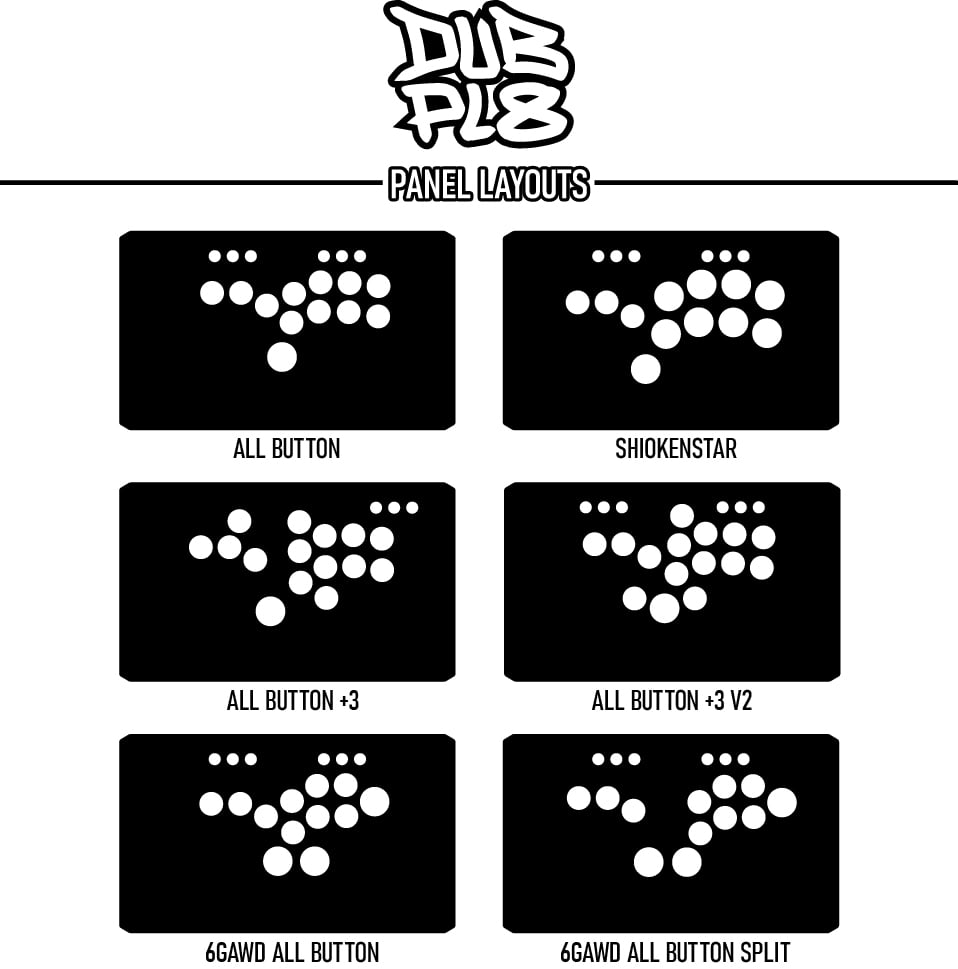

• Accepts 24mm & 30mm Snap-in Arcade Buttons (size depending on layout). Recommended Buttons: Sanwa OBSF, Qanba Gravity KS, Punk Workshop.
*You will have to bend the leads/wiring in order to close the bottom cover*
• Brook Fighting Board or GP2040-CE PCBs with USB-B Connection
• 12mm Aux Buttons
• USB-B Panel Mount
• USB-B Cable
• Optional Black 0.16” (4mm) EVA Foam Bottom Cushions Sold Seperately.
The DUB PL8 assembles similarly to the full sized 4TW. Click here to view the guide.
Each DUB PL8 Enclosure is made to order. Average Turn Around is Currently 3-5 Business Days to ship.
Download 4TW Artwork Template
Shipping via USPS or UPS:
+$12 US
*Please request a quote for all other international shipping options. We are not responsible for import fees.
Recommended Arcade Parts Shops
• Brook Accessories
• Focus Attack
• Arcade Shock
• Paradise Arcade Shop
•My Fightstick Builder Resources List on Amazon
*All Sales are Final
