Fightstick Button Layouts & Assets SVG File

Looking to make your own fightstick from scratch? Save time recreating, measuring, and vectorizing assets with this essentials SVG file for common button layouts and mounts/cutouts. Perfect for laser cutting / workworking projects or for reference.

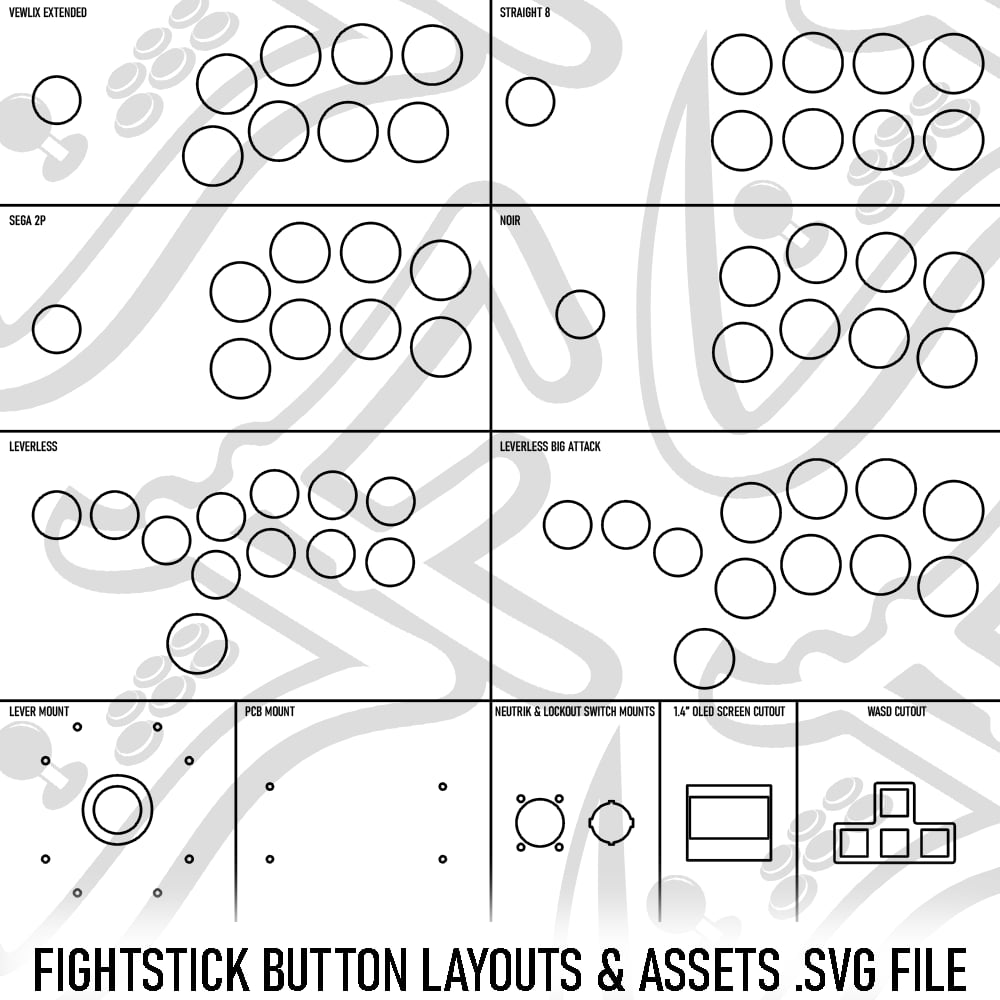

Button Layouts:
• Vewlix Extended
• Straight 8
• Sega 2P
• Noir
• Leverless
• Leverless Big Attack

Mounts / Cutouts:
• Lever Mount (for JP and KR levers)
• PCB Mount (for Brook & GP2040)
• Neutrik Mount
• Lockout Switch Mount
• 1.4" OLED Screen Cutout
• WASD Cutout

SVG files can be opened and edited with a wide range of software, including vector graphics programs like Adobe Illustrator, Inkscape, Affinity Designer, and CorelDRAW, as well as most modern web browsers (Chrome, Firefox, Safari, Edge), which can display SVGs natively.

*Digital Download*

This file does not include any assets for 4TW Fightstick panels.
